Module đầu dò thường, chuông HORING QA-17B

529,000

Mô tả

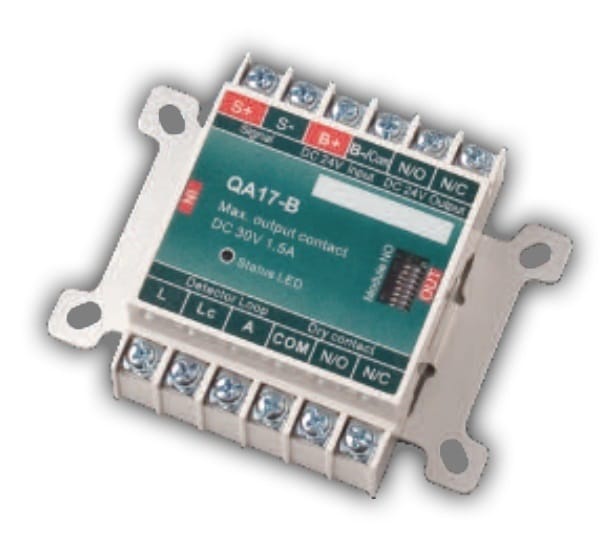

Module đầu dò thường, chuông HORING QA-17B

– Low power consumption in monitoring mode, high stability.

– Easy installation, either single module installation or several modules installed on a special mounting bar. Implanted type gang box is available to suit the decoration design.

– The Module is designed with separate input and output contacts to decrease the difficulty of moving external wiring.

– Control Module QA-17B is designed to control input & output for all kinds of systems. (fire alarm, smoke evacuation, sprinkler, foam, winding door…etc.)

Đặc tính kỹ thuật

Type Control Module
Purpose Input & Output for all systems
System Connected Series with conventional detector
Input Source Loop signal
Output Contacts/Load 1 in 2 out COM. N.O. N.C. 1.5A @30V DC
EOL Resistor 10kΩ
Address Coding Binary
Ambient Temperature 0oC ~ 50oC
Material Fire-proof plastic
Dimensions 60 x 76 x 31mm
Color Green

– Bảo hành: 12 tháng.
